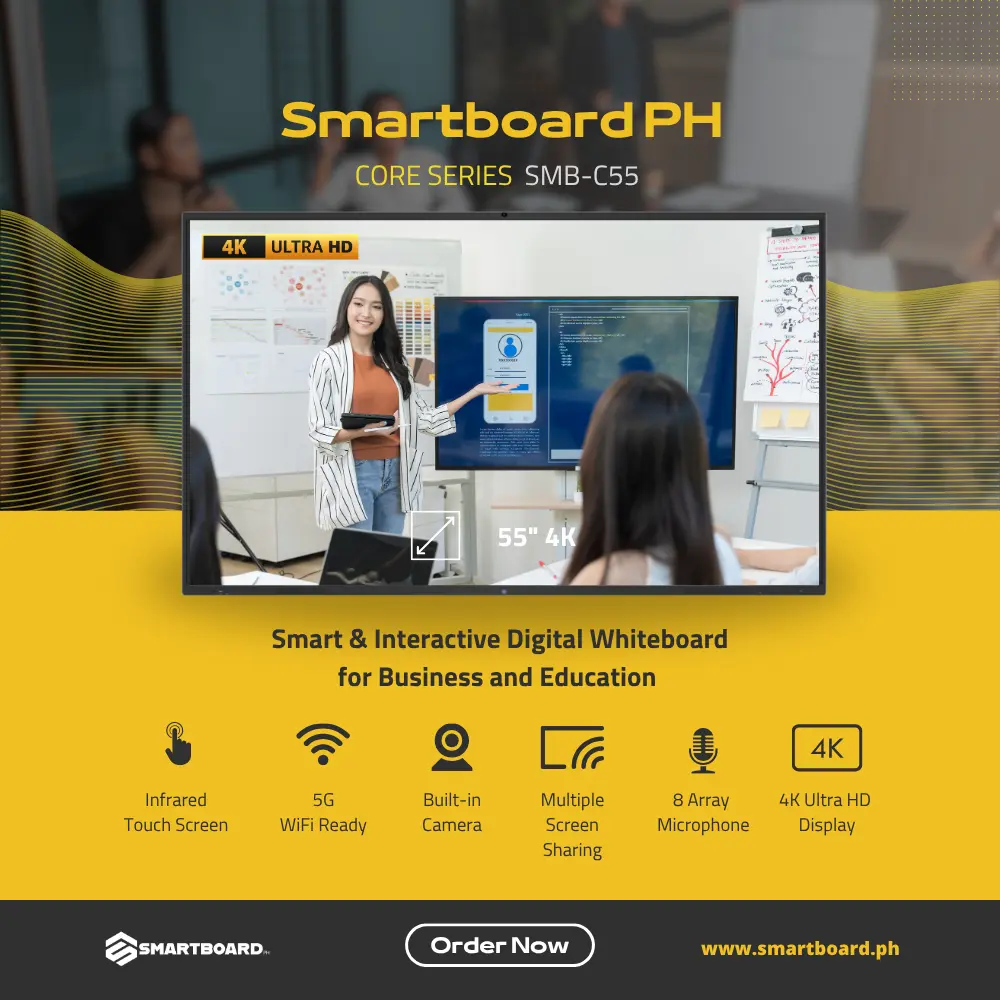

Smartboard 55 Interactive Whiteboard (2026)

Transform your presentations and lessons with Smartboard PH’s interactive whiteboard series. Our Smartboard offers you seamless collaboration, crystal-clear visuals, and intuitive touch technology.

Core Series
₱ 78,998.75 ₱ 78,998.75
(Tax included)
  • Chipset
Contact Us
Terms and Conditions

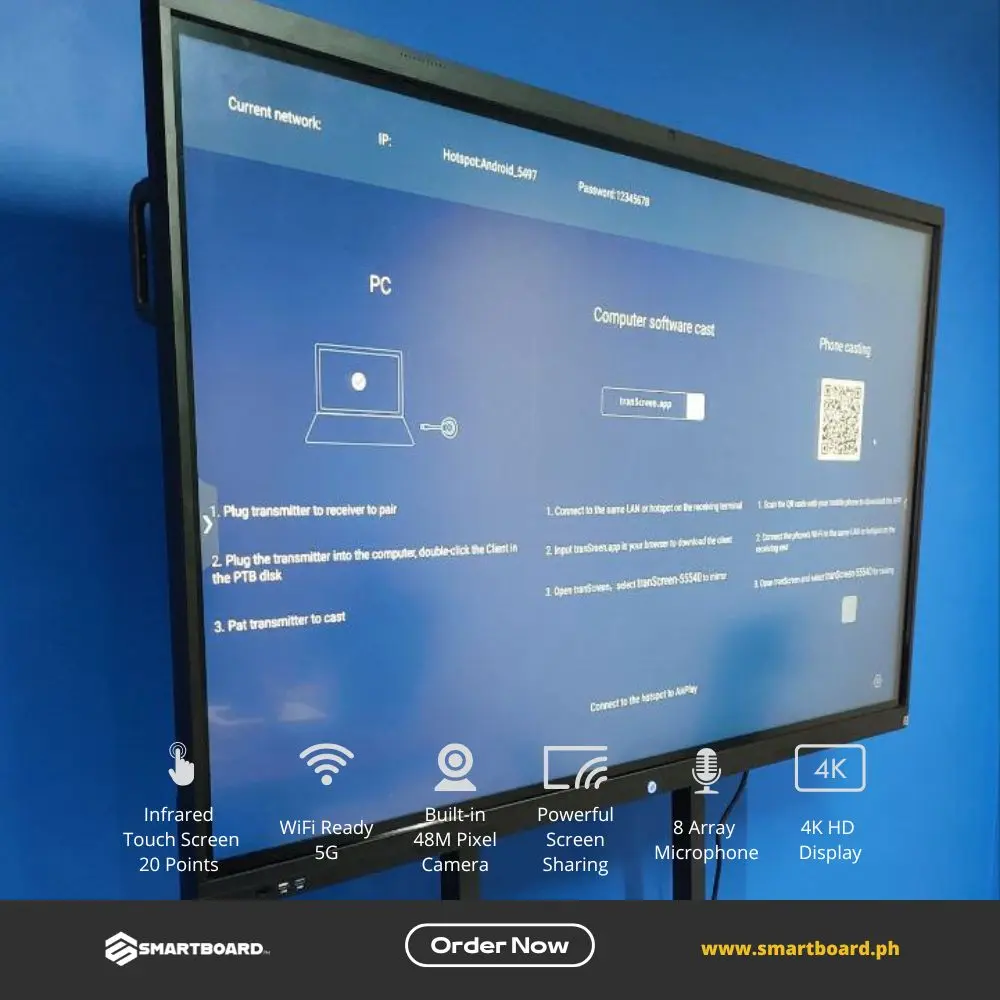

✅ Smart & simple all in one device
✅ Wireless Screen Sharing
✅ 4K Ultra HD Display
✅ 40-point Touchscreen
✅ Highest Specs in the Market
Chipset Core Series, Pro Series, Prime Series

Accessories Included

OPS Computer

(Not available in LITE)

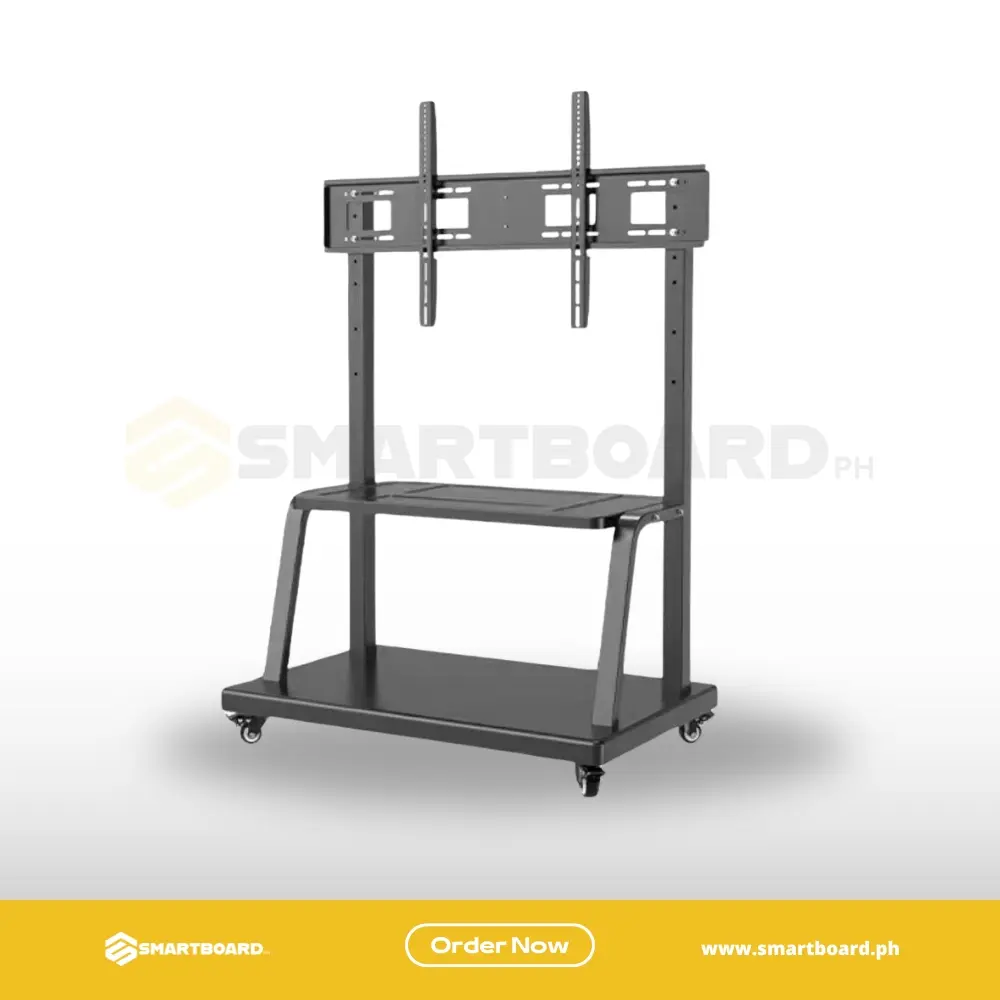

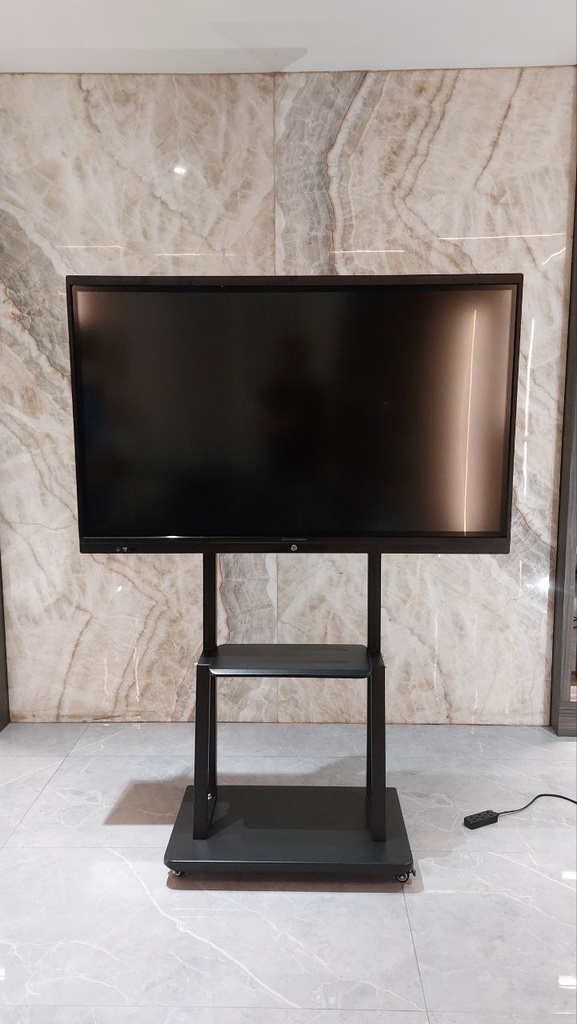

Mobile Stand

Smart Pen

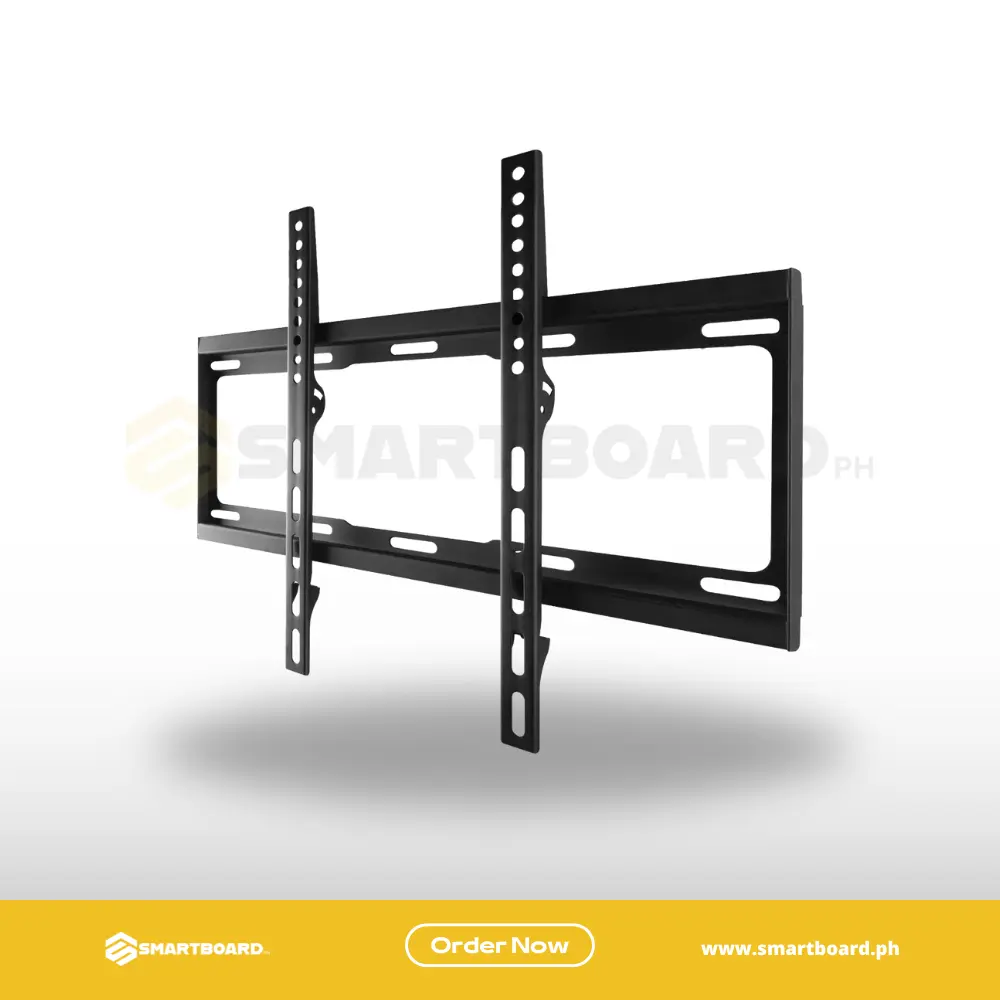

Wall Mount


Remote


Power Cord


Technical Specifications

SizesScreensPowerOPSAndroidCameraMicrophonePortsNotice

Sizes

SMB-55

Dimension:
55"

Smartboard Size:
1485 x 887.58 x 92


Weight:
85~95kg

SMB-65

Dimension:
65"

Smartboard Size:
1485 x 887.58 x 92


Weight:
85~95kg


SMB-75

Dimension:
75"

Smartboard Size:

1185 x 1847 x 92


Weight:
85~95kg

SMB-86

Dimension:
86"

Smartboard Size:
1953 x 1151 x 93


Weight:
85~95kg

SMB-98

Dimension:
98"

Smartboard Size:

2216.8 x 1317.3 x 108.7


Weight:
85~95kg

SMB-110
Dimension:
110"

Smartboard Size:
1477.52 x 2500.80 x 109.69

Weight:

95~100kg


Screens


Applicable to all sizes:

Screen Resolution: 3840 x 2160

Response Time: 6.5ms

Display Colors: 16.7 Billion

Viewing Angle: 178º


Power

 Power Consumption: ≤650W

Operating Voltage: 100V-240VAC, 50/60Hz

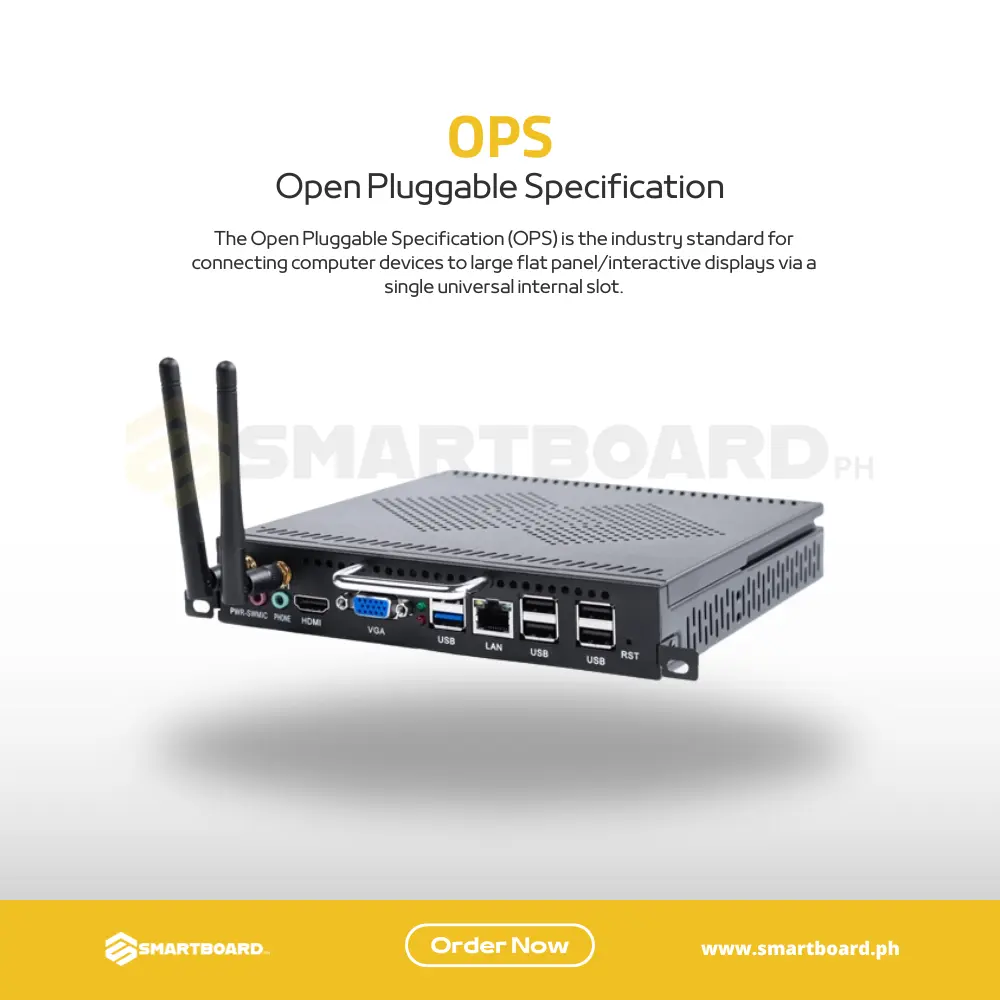

OPS

Smartboard PH Core Series

CPU

Intel Gen 4 i5 4210M

Video Cards

Intel CPU Integrated Graphics

Memory

8G DDR3

Storage

128GB mSATA

Network Card

Realtek 8111F Gigabit Network Card

System

Windows 11


Smartboard PH Pro Series

CPU

Intel 12th Gen i5-12450

Video Cards

Intel CPU Integrated Graphics

Memory

16GB DDR 4 SO-DIMM

Storage

256GB mSATA

Network Card

Realtek 8111F Gigabit Network Card

System

Windows 11 Pro


Smartboard PH Prime Series

CPU

Intel i7-13650H

Video Cards

Intel CPU Integrated Graphics

Memory

32GB DDR 4 SO-DIMM

Storage

512GB mSATA

Network Card

Realtek 8111F Gigabit Network Card

System

Windows 11 Pro


Android

Smartboard Core Series

CPU: 8x ARM Cortex-A55 1.2GHz
Android Version:  14.0
Memory: 4 GB
Storage capacity: 32 GB (expandable via SD card slot)

Smartboard Pro Series

CPU: Quadcore A55 CPU Mali G52 MP2
Android Version:  14.0
Memory: 8GB
Storage capacity: 128GB (expandable via SD card slot)
Additional Port: USB Type-C

Camera


Image Sensor

HD CMOS Sensor

Pixels

13 Megapixels

Lens Specification

Wide-angle fixed focus


Microphone


Audio Processor

Built-in microphone with quad-core digital processing chip

8 Array Microphone

DSP core, supports 6 analog/digital MIC inputs, high performance echo cancellation (AEC) function

Stereo Output

High signal-to-noise ratio with low noise level 3uvrms, providing high-fidelity audio output

Noise reduction

Enable

Dynamic Compensation

3D

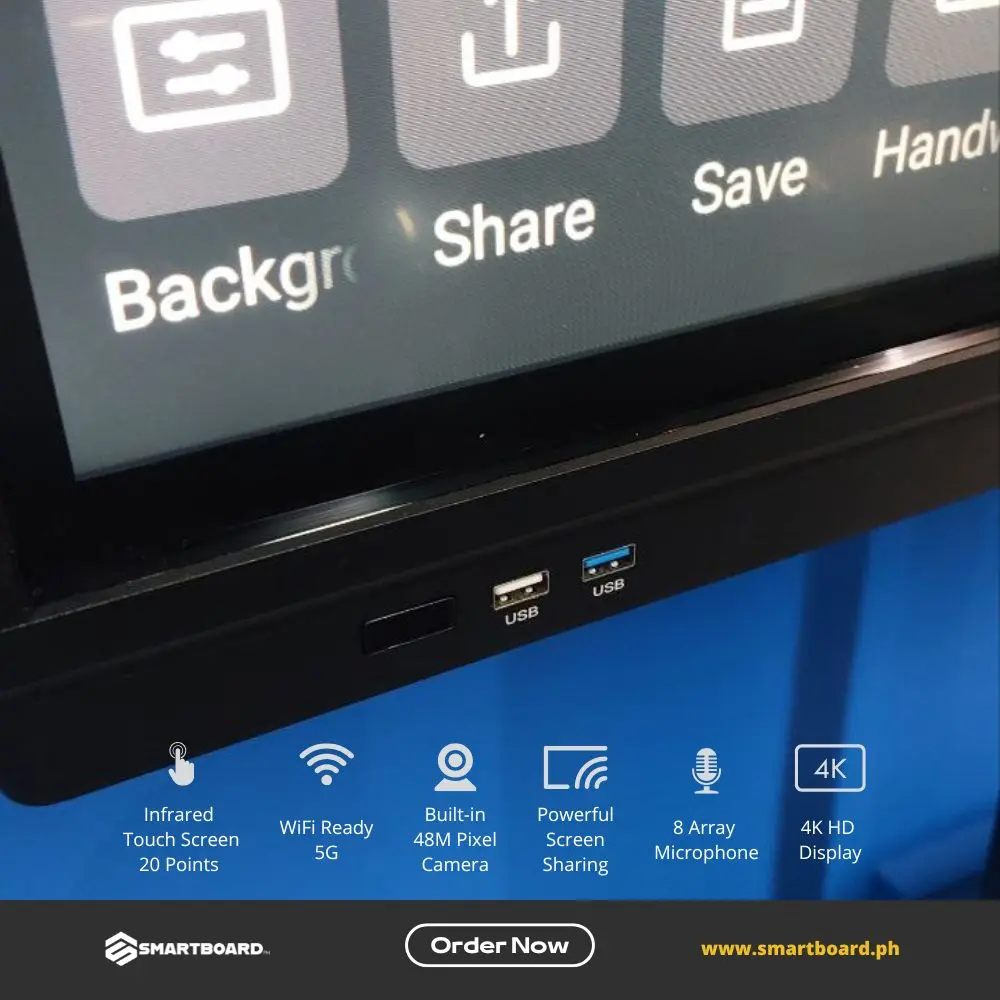

Ports


Smartboard Ports


HDMI

HDMI Port *2

USB

USB3.0 *2 + USB2.0 *2

RS232

D-SUB *1

SD

1 SD Card Slot (Expandable Storage)

USB Type B

USB Type-B *1

OPS PC Ports


USB

USB3.0 *4 + USB2.0 *2

USB Type-C

1 USB Type-C for Pro Series Only

LAN

LAN *1

HDMI

HDMI Port *1

Display Port

Display Port *1

Audio

Line *1 and Mic *1


Notice


All information contained in this document is subject to final interpretation by the Smartboard PH and all unauthorized and permitted reproduction is not approved and should be prohibited.

All the parameter data information of this series of standard models, does not represent all the parameter data of this series of products of our company, the actual parameter data should be subject to the specific model signed with the sales.
